TUTORIAL03 – Cognex In-Sight 7200 primo ladder di Trigger al visore per acquisire immagini da PLC 1200 in Tia Portal V20

In questo video seguito dei
video 01 ( 👉🏻 https://www.domenicomadeo.com/?p=8663 )
video 02 ( 👉🏻 https://www.domenicomadeo.com/?p=8697 )

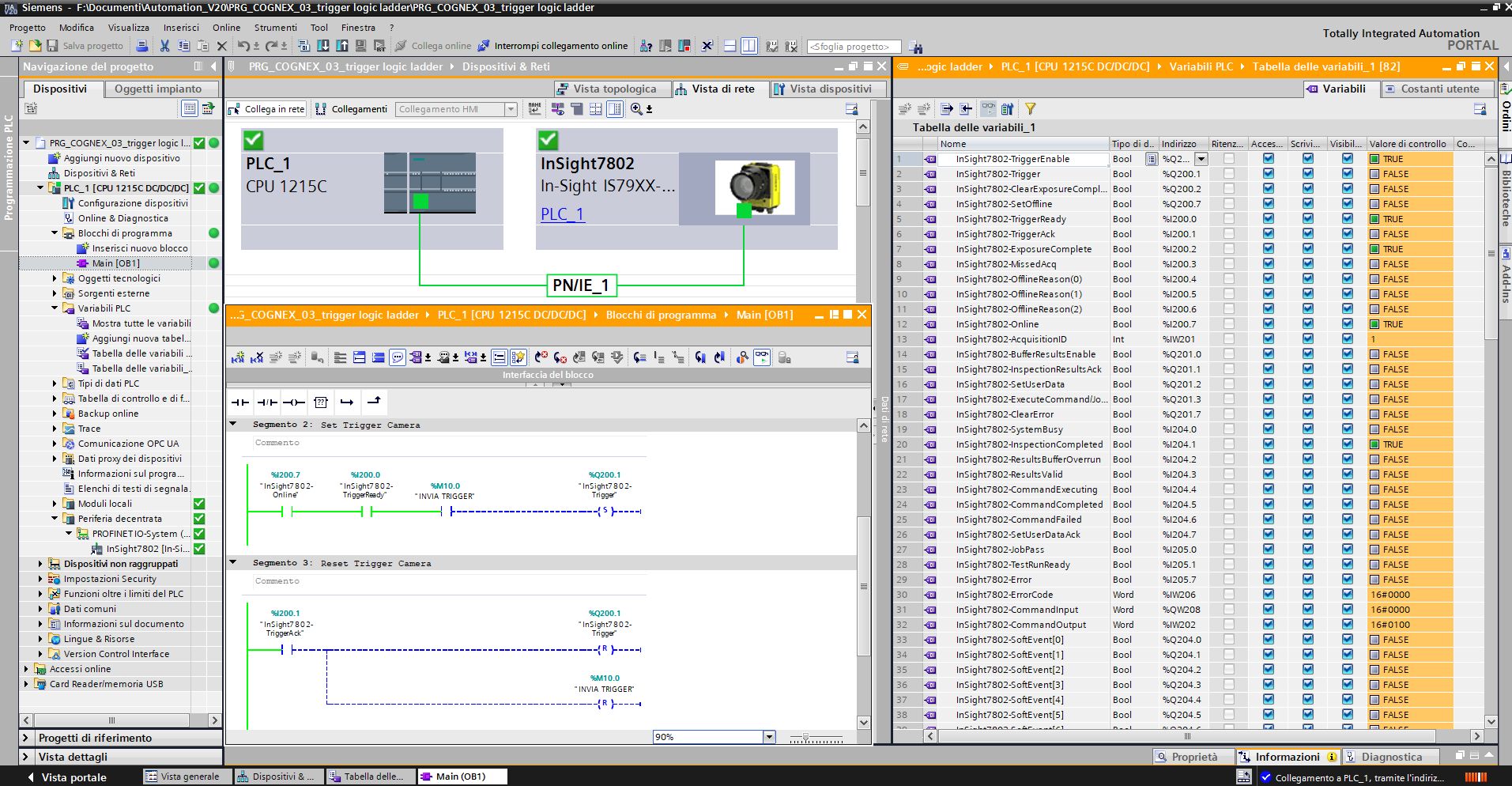

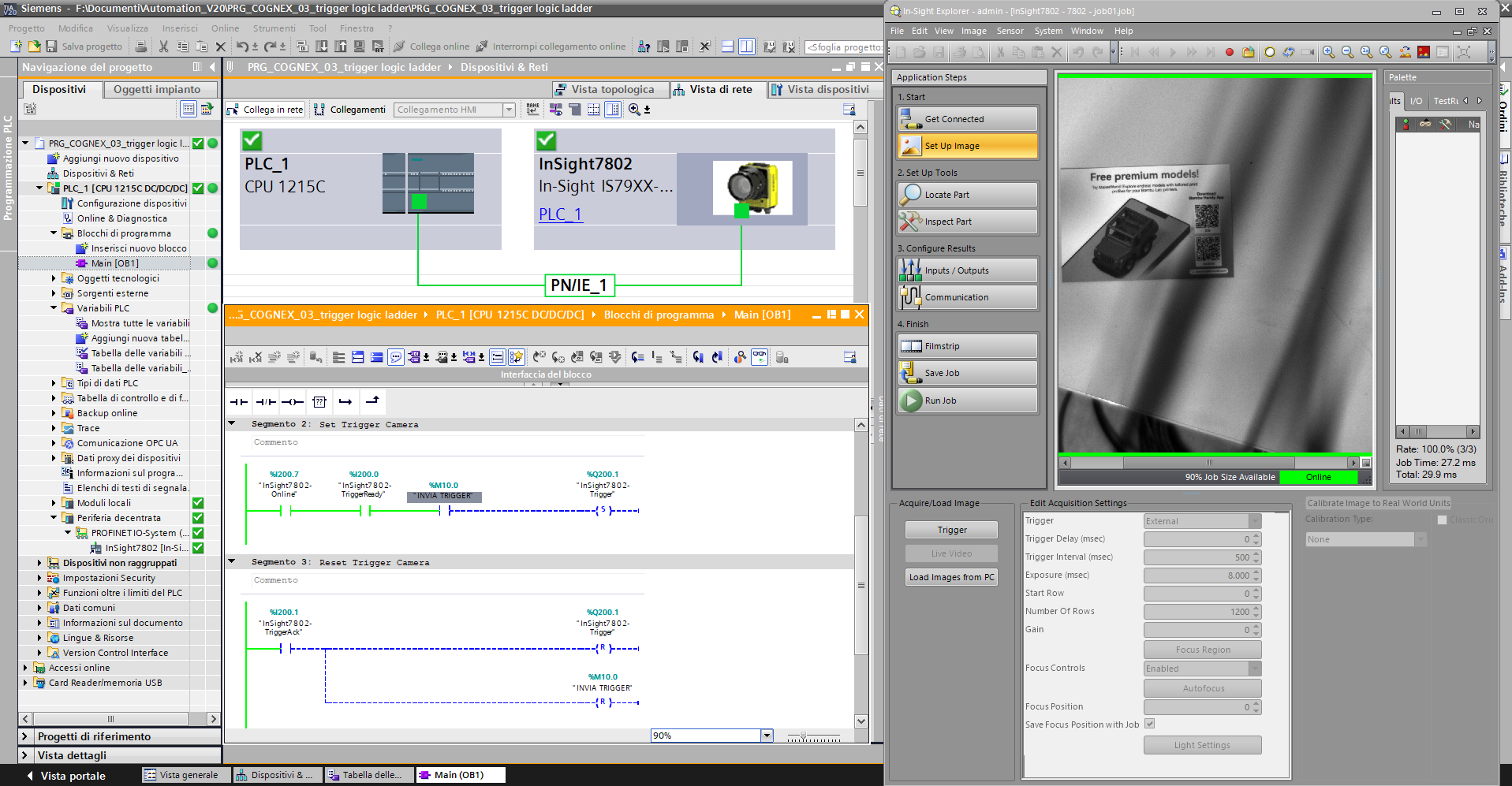

vedremo come scrivere il nostro primo programma in ladder per inviare un trigger al visore ed acquisire l’immagine con un PLC Siemens 1200 in Tia Portal V20, nel nostro caso abbiamo una camera della serie IS7000, gestita con In-Sight Explorer. Le variabili vengono generate tramite il file Excel fornito da Cognex, che potete scaricare da qui.

🔗 Ulteriori tutorial e risorse su:
📺 Iscriviti al canale per i prossimi video
👉 https://bit.ly/2HVkIRe
📺 Abbonati al canale per i video in esclusiva
👉 https://bit.ly/joinDMchannel

🇬🇧✅ Audio available in both Italian and English – enable it in the video settings,  You can wait for the English audio to be processed and enable automatic translation. ✅

In this video, a continuation of
Video 01 ( 👉🏻 https://www.domenicomadeo.com/?p=8663 )
Video 02 ( 👉🏻 https://www.domenicomadeo.com/?p=8697 )

We’ll see how to write our first ladder program to send a trigger to the viewer and acquire the image with a Siemens 1200 PLC in TIA Portal V20. In our case, we have an IS7000 series camera, managed with In-Sight Explorer. The variables are generated using the Excel file provided by Cognex, which you can download here.
