TUTORIAL – Come configuare scheda ABB DSQC652 Digital I/O DeviceNet in RobotStudio

In questo tutorial vediamo come configurare la scheda I/O digitali ABB DSQC652 I/O Unit (3HAC025917-001) in un controllore IRC5 da RobotStudio, come importare il file di configurazione con i segnali e le impostazioni del DeviceNet master/slave.

https://new.abb.com/products/it/3HAC025917-001/3hac025917-001

La stessa operazione può essere effettuata collegandosi direttamente alla porta manutenzione del controllore reale.

Potete scaricare il file base usato nel tutorial compilando il modulo di seguito e inviando la richiesta, VERRANNO APPROVATE RICHIESTE SOLO se STUDENTI e/o DOCENTI certificati dalla casella di posta elettronica istituzionale .EDU.IT .

🇬🇧✅ Audio available in both Italian and English – enable it in the video settings, You can wait for the English audio to be processed and enable automatic translation. ✅

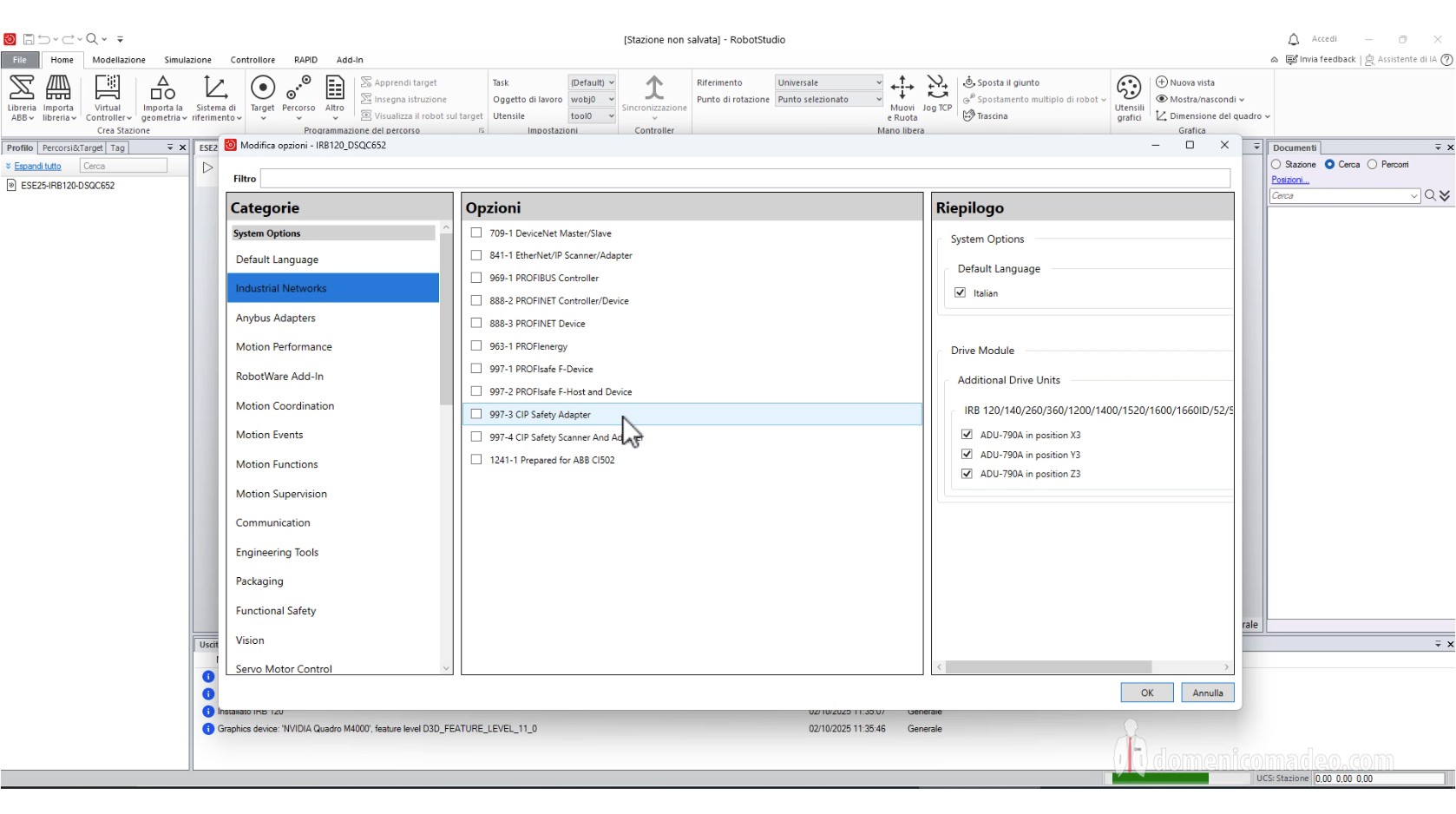

scheda ABB DSQC652 Digital IO DeviceNet in RobotStudio

In this tutorial, we’ll show you how to configure the ABB DSQC652 I/O Unit (3HAC026592-001) digital I/O board in an IRC5 controller from RobotStudio, and how to import the configuration file with the DeviceNet master/slave signals and settings.

The same operation can be performed by connecting directly to the maintenance port of the real controller.

You can download the base file used in the tutorial by filling out the form below and submitting the request. REQUESTS WILL BE APPROVED ONLY if STUDENTS and/or TEACHERS are certified by the institutional email address.

    Form Richiesta File:
    NB: verranno ignorate richieste che non rispettano le info del modulo





    Questo modulo utilizza Akismet per ridurre lo spam.
    Scopri come vengono elaborati i tuoi dati.

    #robotstudio #abb

    SOFTWARE NECESSARI:
